Factory Entrance Control System

Current status and need for factory access control

For manufacturing factories, there are often many employees coming in and out every day. The problem is how to control the entry and exit of employees and customers into the operating area at the factory.

With such a large number of employees, ensuring security will often be difficult for the security staff at that enterprise.

At the same time, manufacturing factories need to integrate security and safety increasingly at the forefront. Most factories today are equipped with surveillance camera systems, alarm systems, burglar alarms, etc. However, these systems are still not enough to control access of workers.

Along with that, then access control system with modern devices is also more popular today. With high efficiency in access management, they are increasingly sought after by factory units.

Solution to control factory entrances using lane gates

Controls entrance and exit to the factory is the access management of employees and customers at manufacturing plants in industrial parks today. The system uses modern technological equipment to improve efficiency and performance. Minimize human intervention. Thereby building a more modern, civilized environment.

Solution goal

– Meets the need for security control and safety for the factory area

– Only authorized people can enter and exit the specified area

– Limit traffic congestion, especially during peak hours at the factory

– Quick access authentication, limiting the disadvantages of traditional controls

– Building a more professional and civilized environment.

Details of the solution to control factory entrances and exits using lane gates

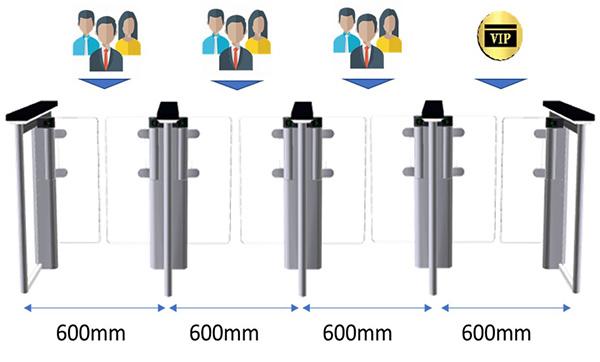

1, Basic model

The model is built based on the characteristics of each unit. Usually this system will be located right at the company's entrance gate/lobby. Applied to allow employees to have convenient access in and out of the factory. People coming in and out are employees, customers, and partners of the factory.

2, Operating procedures

– The control gate system is installed right at the factory entrance hall

– The access control center is connected to the control gate system and central management computer

– The controllers will be connected to each other and connected to the central management server

– The card of each employee at the factory will be registered on the software on the computer in the server room. All access events will be managed in detail by the software and necessary reports can be exported.

– To be able to enter and exit the controlled area, users must have an authentication ID on authentication devices such as fingerprint/magnetic card/face. That ID is authenticated, the open command will be transmitted from the authentication device to the central unit and the lane gate, the lane gate opens for users to enter and exit. On the contrary, if the ID is incorrect or has not been registered, that person will not be able to enter or exit this control area.

3, Recommended equipment in factory access control solutions

a, Tripod Turnstile

Tripod turnstile gates meet the criteria of safety, efficiency, durability and reasonable price. Completely suitable for use in today's factories.

Some outstanding models include: Tripod TS2000 brand ZKTeco, TS1000

b, Flap Barrier Sliding Gate

Flap barrier brings more aesthetics but still ensures safety, high efficiency, especially fast opening speed. They are more suitable for use in office area lobbies.

Featured model: model SBTL3000

c, Swing Gate

Swing Gate with speed opening and closing feature; Fully meets effective safety control features. Besides, it contributes to building a more professional and modern environment. However, their price is often quite high, so they are suitable for use in office lobby areas...

Featured products: model SBTL3000; SBTL300; SBTL8200

d, Security detection gate

Security detection gates help factories have better control, especially for metal and chemical factories, high-tech factories or higher control needs...

e, Access authentication devices

Fingerprint, face, magnetic card recognition device

Example: Speedface V5, H5, Depot BL7

With the task of processing information on the card and giving feedback to the system communication circuit (control center)

f, Central equipment, software, centralized management equipment

– Connect devices and ingress/egress lanes together

– Management and reporting software. With the task of controlling opening and closing operations, granting permissions to access registration cards at the factory; retrieve reports…

– Support devices such as network switches, UPS for the purpose of storing information, entering software data, and monitoring activities

Benefits of factory access control solutions

– The system manages the identity as well as the time and entry and exit areas of employees and customers.

– Ensuring security for property and people at the factory

– Ensuring the safety of assets in the factory.

– Intrusion detection or alarm in emergency cases. Help managers know information early to take timely action.

– The system operates automatically, limiting human intervention, so it is more cost-effective for businesses.

– The entrance control system makes the factory campus more beautiful and modern. Build a civilized environment and improve the factory's facilities
